| Specifications of Digital Counters |
| Model | C-500 | C-700 |
 Displayed digits |
|  Selection of 10μm |
| Selection of 1μm | | Display |
| | -9999.99 -- 00.00 -- 9999.99 | | -999.999 -- 0.000 -- 999.999 | | High-luminance LED display with 7 segments (red) |
|
Power supply voltage
& power consumption |
| AC100V -- AC240V
/ 9VA or lower |
| Operating temperature |
| 0 -- +40oC |
| Compatible Linear Gauges |
| Selection of 10μm display |
| Selection of 1μm display |
| | DL-2, D-5, D-10, D-20, D-30, D-50, D-100, DN-10, DN-20, D-5UZ | | DL-2S, D-5S, D-10S, D-20S, D-30S, D-50S, D-100S DN-10S, DN-20S |
|
| Accessories |
| | AC power cord (2m) ; One cord | | Metal fittings for panel installation ; Two units |
| ( to be used for installation in panel and securing stand fittings ) | | Stand fittings ; One unit |
| ( to be used when counter is used as desktop device ) |
|
Terminal block functions
( Rear panel ) |
| | Terminal block | --> Screwless terminal block | | Usable electric cables | --> AWG22 - 28 | | Length of peeled wire of cables | --> 8 - 9mm |
| Pin alignment | | (*1) | St/Sp | Controls "START" and "STOP" of MAX, MIN, P-P
measurement mode. | | (*2) | React | Controls "SUSPEND" and "START" of P-P
measurement mode. | | 3 | Latch | Controls "LATCH" and "CANCEL" of measured value. | | 4 | Reset | External "RESET"
"PRESET" ( Function available only in Model No. C-700 ) | | 5 | Alarm | Error signal output |
| Max
Display | Min
Display | P-P
Display | | (*6) | -NG | Outputs -NG based on
OK±NG judgment (red LED). | --> | +NG(2) | -NG(1) | NG(2) | | (*7) | OK | Outputs OK based on
OK±NG judgment (green LED). | --> | OK | OK | OK | | (*8) | +NG | Outputs +NG based on
OK±NG judgment (orange LED). | --> | +NG(1) | -NG(2) | NG(1) |
| (1) : NG output in first stage
(2) : NG output in second stage | | 9 | GND | GND | | (* ) | Circled numbers indicate functions available only in Model No. C-700 |
|
Dip sw setting functions
( Printed circuit board ) |
| | Dip(1) |
| Dip(2) | | SW 1 | Select 1μm or 10μm |
| SW 1 | Settings by Manufacturer | | SW 2 | Select direction of
counting. |
| SW 2 | Select whether or not to include
default values for OK±NG judgment. | | SW 3 | Select activation or non-
activation of error output. |
| SW 3 | Select either "orthogonal" or "sine"
for input waveform. | | SW 4 | Select activation or non-
activation of overflow. |
| SW 4 | Select either 400msec or 100msec
for RESET time. |
|
Data output (RS-232C)
D-Sub9P plug
INCH screw |
|
| Options |
| Excel input software |
| BCD output board |
| | Pin Alignment | | 1 | NC | -- |
| Communication mode ; Half-duplexasynchronouscommunication | | 2 | Rxd | in <-- |
| Communication speed ; 9600bps | | 3 | Txd | --> out |
| Format ; 7Bit ASCI I | | 4 | NC | -- |
| Parity ; even number | | 5 | SG | -- |
| Stop bit ; 1Bit | | 6 | NC | -- |
| RTS / CTS ; Returned when not in use. | | 7 | RTS | --> out |
| Reception command ; Transmission request ASCI I [T] [t] | | 8 | CTS | in <-- |
| ; Reset ASCI I [R] [r] |
| | 9 | NC | -- |
| Connection cables ; Cross cables ( not included ) |
| PK-2002 |
| ; Data imported into Excel cells from RS-232C output. | | CB-BCD |
| ; Cannot be used in combination with RS-232C output. |
|
| Display functions |
| | 1/1 display | --> Displays the measured value as is. | | 1/2 display | --> Displays the measured value after halving it. | | ×2 display | --> Displays the measured value after doubling it. |
Note ;
With 1μm display and ×2 display, the lowest digit will be displayed as an even number. |
| Presetting display function |
| | Zero setting only |
| | Can display preset values |
|
Measurement mode function
[MAX] [MIN] [P-P] |
| --- | | Current value display | Maximum
value (Max) | RESET action is taken by
ST of the ST/SP control
terminal. | Minimum
value (Min) | Deflection
(P-P) |
|
OK±NG judgment function
( Refer to terminal output
circuit ) |
| --- | Current
value mode | +NG | OK | -NG | Maximum
value mode | OK | +NG (1) | +NG (2) | Minimum
value mode | OK | -NG (1) | -NG (2) | Deflection
mode | OK | NG (1) | NG (2) |
|

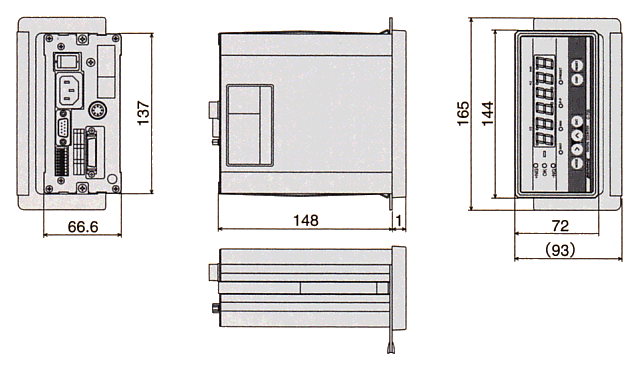

| Dimensions | / | Weight |
| | 144(W)×72(H)×160(D)mm | / | 950g |
|
给我留言

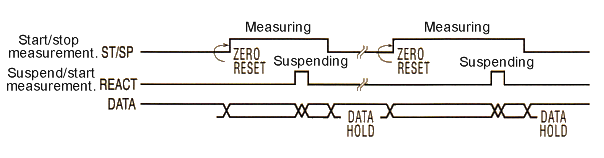

Time Chart [ Model No. C-700 ]
